Configuring Single Sign-on (SSO) with MS Azure: for Brightflag Customers (Clients)

Brightflag integrates with several Single Sign-on (SSO) tools. If you are considering setting up SSO for Brightflag with MS Azure, your company’s dedicated Brightflag Implementation Manager or Customer Success Manager can guide you through this.

To set up an MS Azure connection with Brightflag:

1. Go to https://portal.azure.com/
2. Click on Azure Active Directory
3. Click on Enterprise applications
4. Select New Application
5. Select Non-gallery Application
6. Name the application “Brightflag” and click Add
   1.
7. In the application, click on Single sign-on
   1.

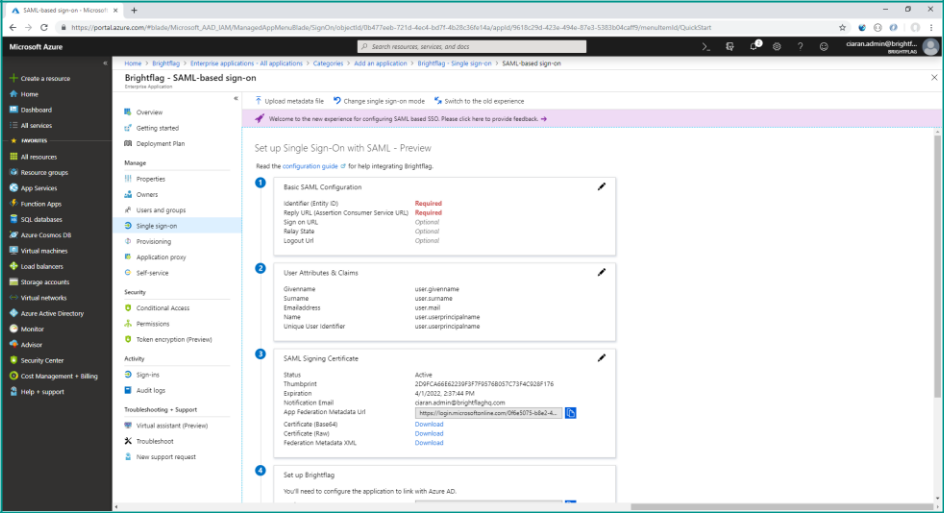

8. Click SAML and the following Screen should be displayed:
   1.

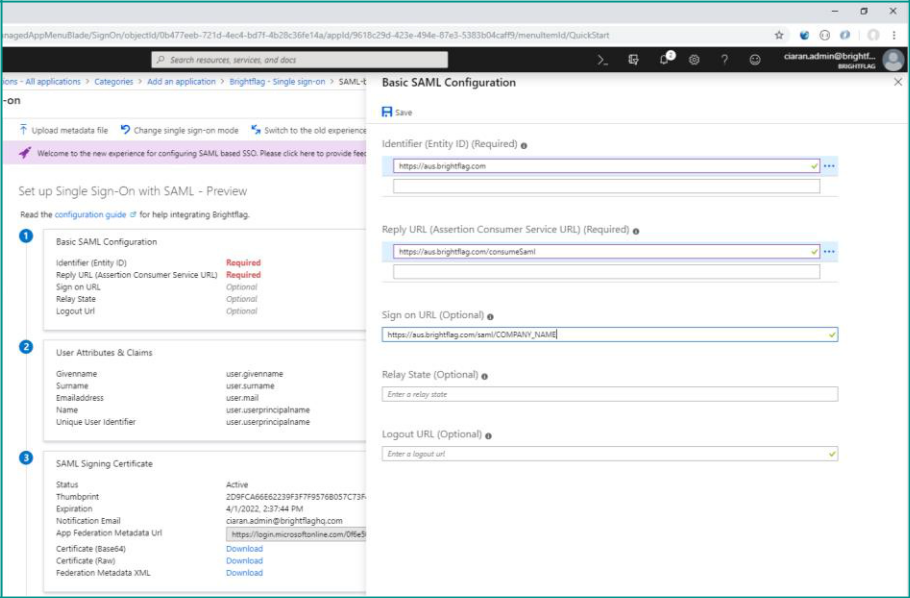

9. The connection should be configured as follows for the given region, where COMPANY_NAME is the name of your company.

   1. Australian Region:

      1. Entity ID: https://aus.brightflag.com

      2. Reply URL: https://aus.brightflag.com/consumeSaml

      3. Sign on URL: https://aus.brightflag.com/saml/COMPANY_NAME

      4.

   2. US Region

      1. Entity ID: https://app.brightflag.com

      2. Reply URL: https://app.brightflag.com/consumeSaml

      3. Sign on URL: https://app.brightflag.com/saml/COMPANY_NAME

      4.

   3. EU Region

      1. Entity ID: https://enterprise.brightflag.com

      2. Reply URL: https://enterprise.brightflag.com/consumeSaml

      3. Sign on URL: https://enterprise.brightflag.com/saml/COMPANY_NAME

10. Set up the Attributes

    1.

       Attribute	Value
       Name Identifier (NameID)	User Email
       username	User Email

       If these are not in the request the connection will not be authenticated. These are also case sensitive.

11. When completed return to the app connection page and Click on the Download link beside Federation Metadata XML. Send the xml file to Brightflag and we will complete configuration of your connection.

    1.
